ROTREX C30 SUPERCHARGER
All Rotrex Superchargers are available as Unit only or Package which includes:
- Rotrex standard oil set, magnetic oil filter and brackets
- Hose kit for Rotrex standard oil set
- Rotrex SX150 traction oil – 1 litre bottle
- Rotrex Pully - please state size
Note: 13 row oil cooler option will require additional traction oil

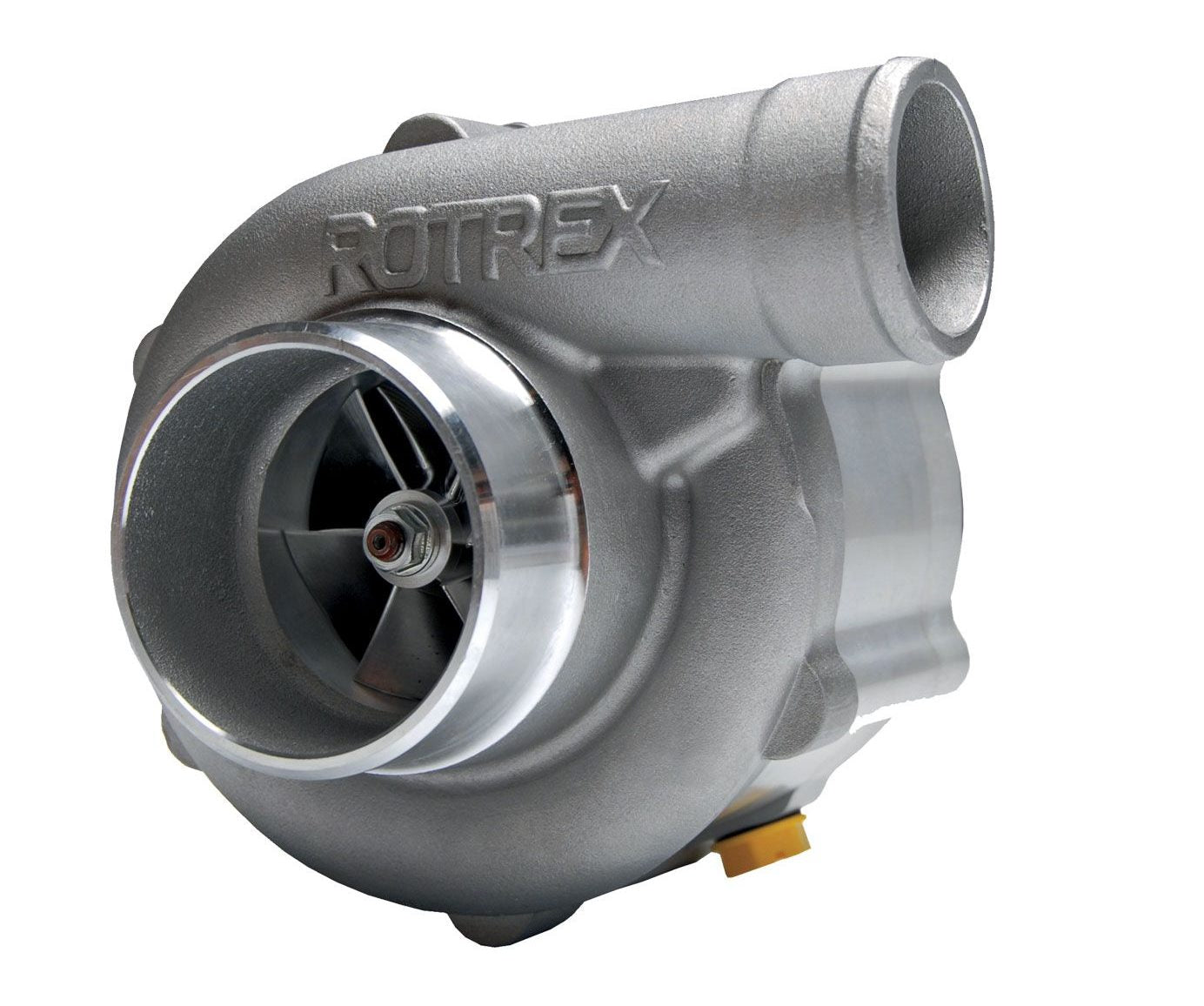

The C30 is a range of centrifugal superchargers with a very versatile application range. Countless number of medium size applications can be boosted by this very efficient and silent unit which supplies air flow up to 0.39 kg/s. Impeller speeds of up to 120,000 rpm are achieved through the patented hi-speed planetary traction drive which combines small size with exceptional performance and durability.
The very low noise and vibration characteristic as well as the high efficiency of these superchargers set the industry standard for what is achievable. The C30 range of superchargers is designed for four stroke gasoline engines. However, two stroke engines or even diesel engines can benefit from these superchargers with remarkable results.
Depending on the application the C30 will support engine outputs up to 320kW. Where one supercharger is not enough, it is possible to use two units to support large amounts of power in a twin-charger configuration.
The C30 can also supply clean pressurized air for other applications such as industrial systems, exhaust gas after-treatment systems, agriculture applications, fuel cell power plants etc. The groundbreaking compact size enables a very flexible supercharger installation particularly on engine applications with tight space and where weight and size are essential.
The supercharger features an integrated dual-action oil pump that works as a dry sump scavenging pump in addition to being the oil supply pump. The self-contained oil system allows flexible positioning of the supercharger on the vehicle and has the benefit of fitting the supercharger without worrying about tampering with the oil system of the engine or any other accessory.
The Rotrex C-type supercharger has been developed and extensively tested with the special Rotrex traction fluid. To maintain the ultimate level of performance and durability it is very important that the unit is exclusively run with special Rotrex traction fluid.
Rotrex centrifugal superchargers - The superior advantages
Acceleration and power delivery
Compared to traditional centrifugal superchargers, the Rotrex unit offers the highest boost at low and mid-range engine speeds. Compressor speeds as high as 240,000 rpm results in superior acceleration and power delivery.
Reliability and low Noise
The secret behind Rotrex’s low noise level is the high-tech patented Rotrex rotary drive system. Smooth planet rollers without teeth’s gives silent operation, less vibrations and offer reliability under all types of operations.
The compact shape of small Rotrex superchargers offer unique packaging advantages and installation flexibility, an important characteristic in the small modern engine compartment.
For MX-5 applications please see our own well proven, thoroughly tested and developed complete packages - BBR hardware including everything required is available for £1800 (MX-5 ND)-£1955 (MX5-NC) in conjunction with the purchase of a Rotrex supercharger:
- BBR High Quality Anodised CNC Rotrex brackets
- BBR High Quailty Anodised CNC Tensioner brackets
- High quality custom manufactured braided oil lines
- Supercharger and revised ancillary belt
- BBR intake restrictor
- BBR CAIS - Cold Air intake system with serviceable air filter
- BBR Forge manufactured front mounted intercooler
- BBR branded Intercooler silicone hoses
- BBR Mandrel Bent intercooler pipe work
- BBR Branded Breather hoses
- Bosch EV14 BBR spec Injectors
- BBR / Bosch MAP / Temperature sensor
- BBR Recirculating piston type dump valve in factory black finish
