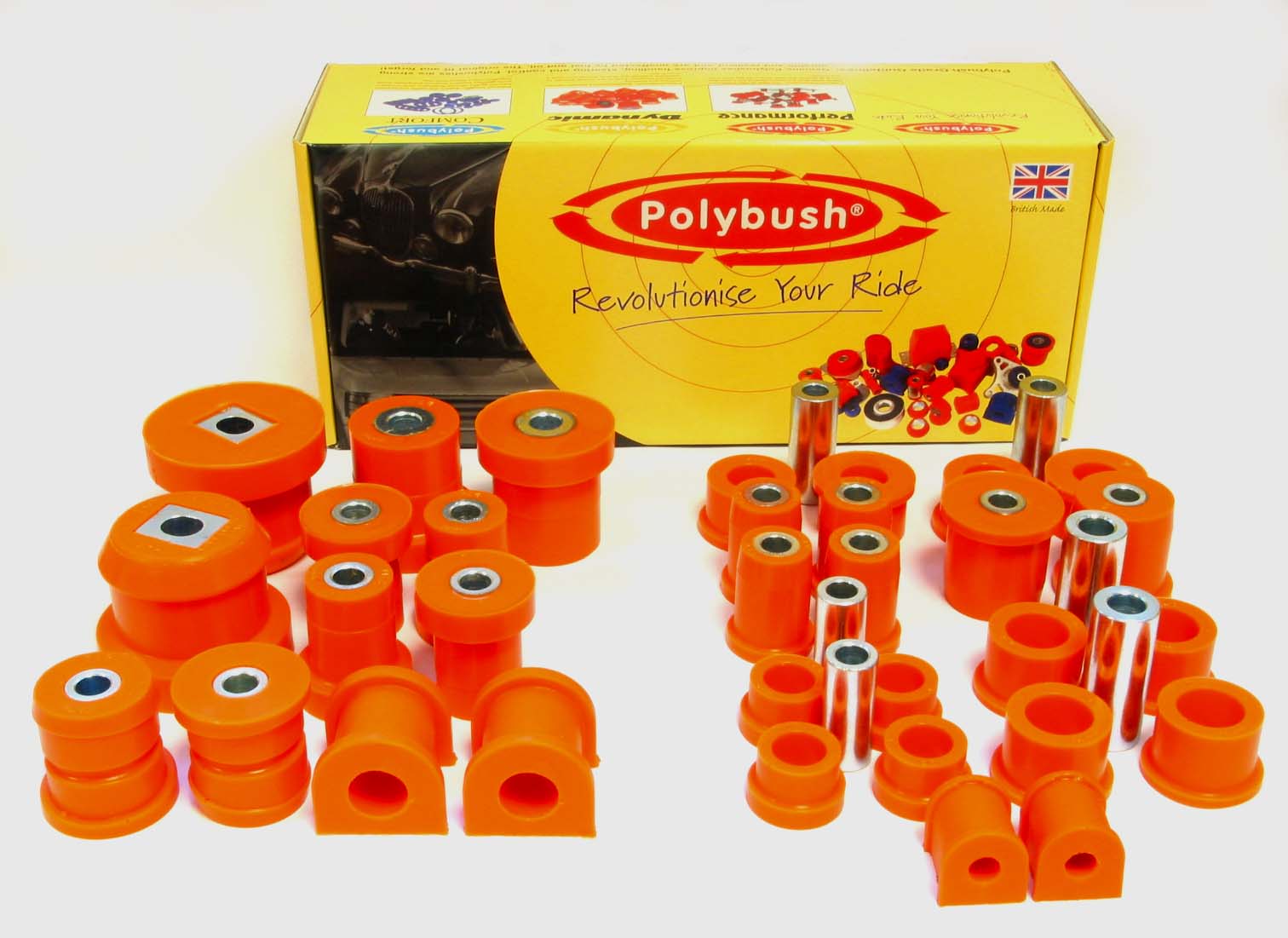

MX-5 NC Polybush Kits

WHY USE POLYURETHANE FOR YOUR SUSPENSION REQUIREMENTS?
Polybush are experts in polyurethane.

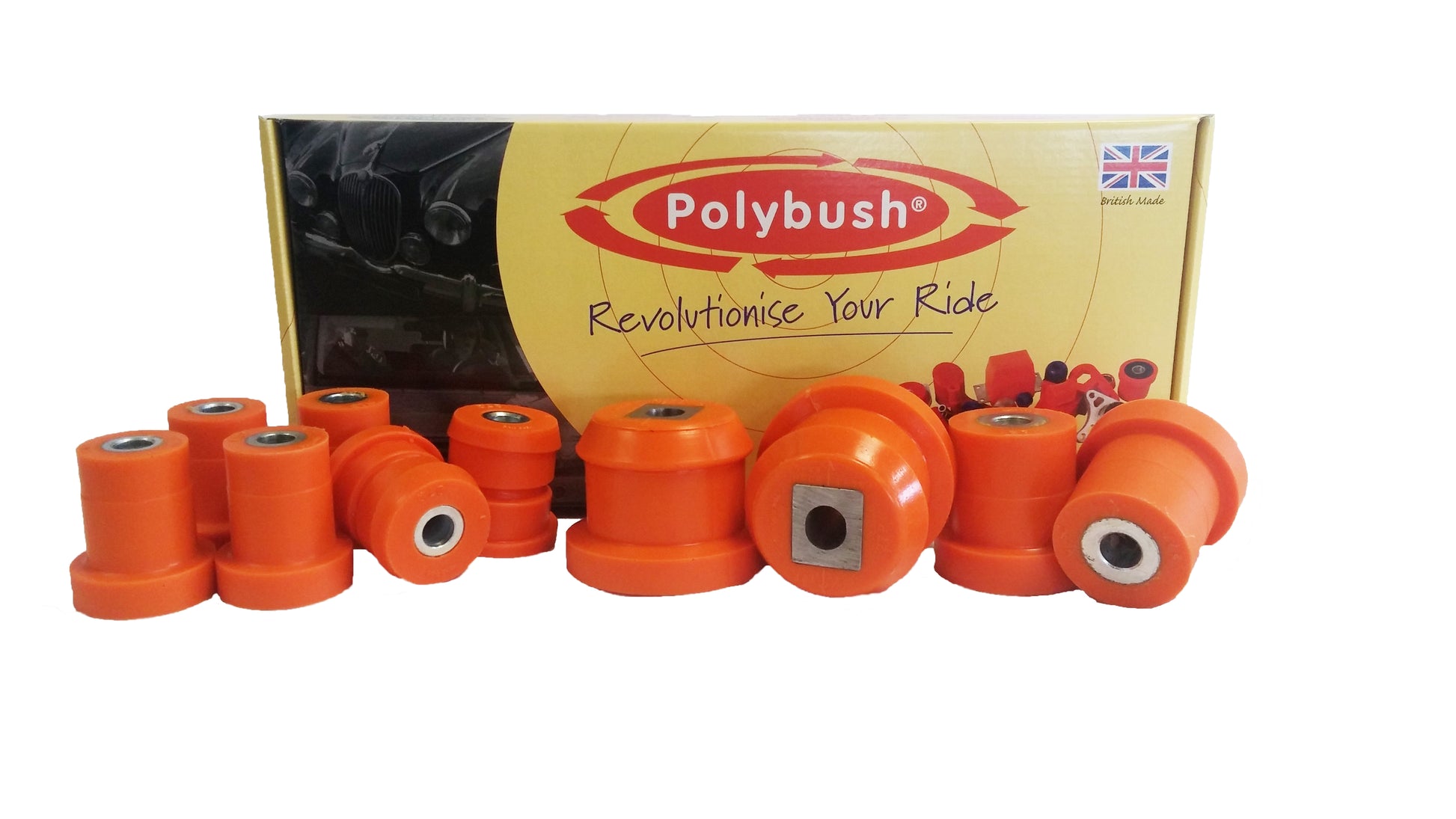

Kit 110 Front Includes:

27M
OE REFERENCE: NAS
BUSHES PER VEHICLE SET: 4

27N
OE REFERENCE: F189-34-470
BUSHES PER VEHICLE SET: 2

27P
OE REFERENCE: NE51-34-450 NE51-34-460
BUSHES PER VEHICLE SET: 2

27Q
OE REFERENCE: F151-34-710
BUSHES PER VEHICLE SET: 2

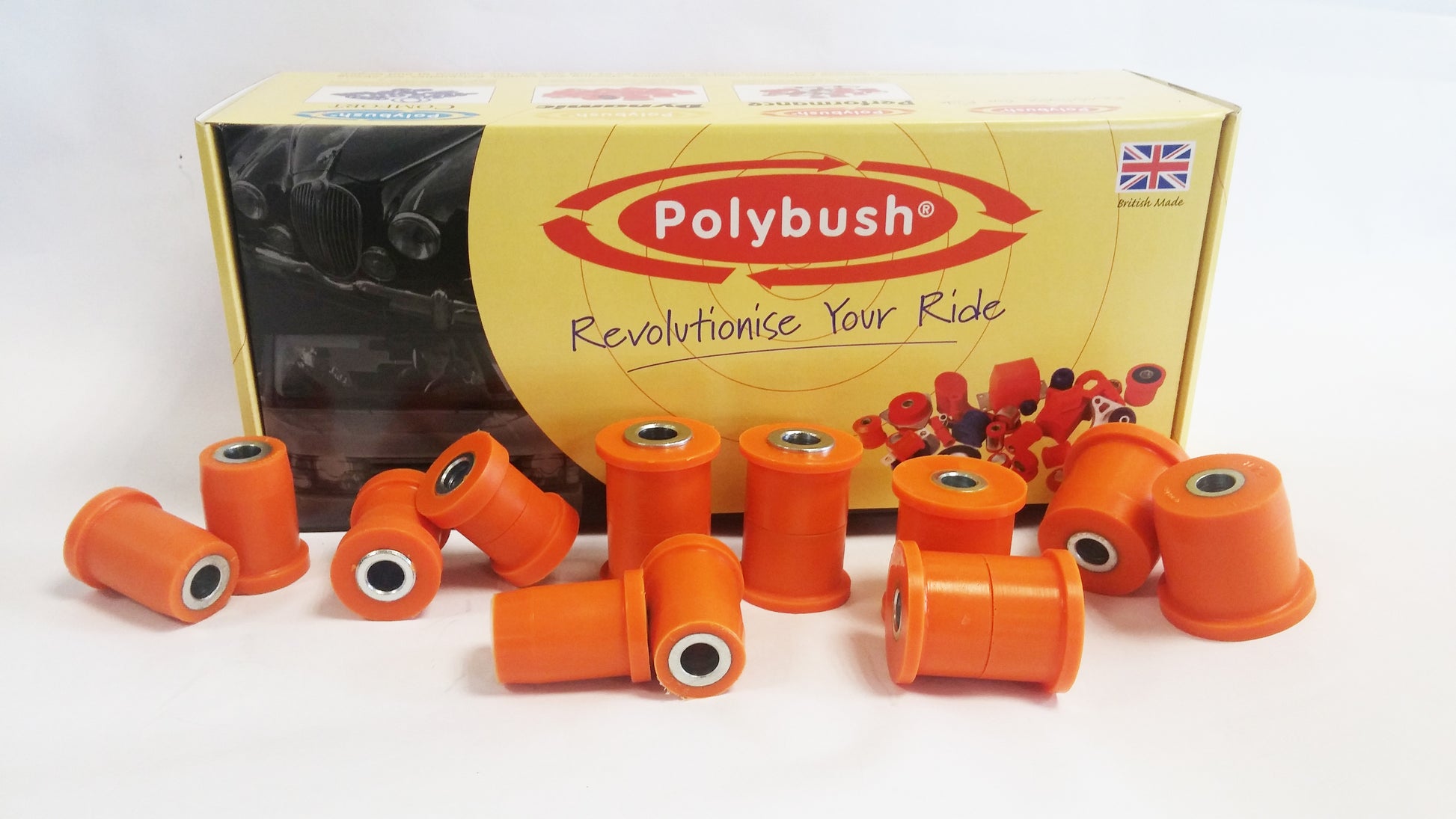

Kit 111 Rear Includes:

27R
OE REFERENCE: NAS
BUSHES PER VEHICLE SET: 2

27S
OE REFERENCE: NE51-28-430
BUSHES PER VEHICLE SET: 2

27T
OE REFERENCE: NAS
BUSHES PER VEHICLE SET: 2

27U
OE REFERENCE: NAS
BUSHES PER VEHICLE SET: 2

27V
OE REFERENCE: NAS
BUSHES PER VEHICLE SET: 2

Polyurethane is an ideal material for making into suspension bushes. Its combination of high tensile strength and elasticity translates into immense durability in the toughest conditions. Polyurethane Bushes have excellent resilience, springing back in to shape effortlessly to absorb shock and prevent dirt ingress and wear. Lastly, it doesn’t age or perish – rubber bushes both perish and are attacked by oils and fuels.

ANTI ROLL BAR BUSHES
You need the resilience of polyurethane to ensure a tight fit to the bar.
This avoids knock and squeaks from loose bushes and minimises wear.
The “Comfort” grade is best for this, but the “Performance” grade is best
if you want to reduce body roll and sharpen up the steering.

CONTROL ARM BUSHES
Polyurethane’s elasticity allows control arms to move as intended whilst its tensile strength soaks up punishment from cornering, braking, accelerating
and poor road surfaces. Go for a “Comfort” grade bush to
preserve ride quality for longer, or choose the harder “Performance”
grade to improve body control and steering.

SPRING BUSHES
Spring bushes are subject to the same forces as a control arm bush, as well as supporting the weight of the vehicle. Polybushes, with their combination of strength and elasticity, improve bush life and ride quality in on.

SHOCK BUSHES
Shock bushes can crush down leaving the shock to rattle on its mountings. Polyurethane’s resilience counters this without needing as hard a bush so you can specify the “Touring” grade for all but the most arduous applications.

MOUNTING BUSHES
All the vehicle’s moving components cause noise and vibration so Polybush makes a range of mounting bushes for steering, suspension, engines and transmissions. The polyurethane isolates these unwanted buzzes and rattles but holds the components firmly in place improving ride smoothness and body control.

WE SOLVE YOUR PROBLEMS!
If you are a design and development engineer for vehicle suspension parts, we can solve your problems with a polyurethane material that overcomes the following drawbacks of rubber suspension bushes:

A too high wear rate
The high cost of tooling and prototypes
The long lead time for prototypes
The wearing away of mating metal parts
The deterioration due to the effects of petrol and oil
Poor resilience especially at high hardness
Poor load bearing and low tensile strength
High compression set causing permanent deformation
