Exclusive to BBR and as used in our sensational ‘Super 220’ MX-5 ND upgrade, these camshaft profiles are the result of extensive development by BBR and manufactured by one of Europe’s leading high performance valvetrain specialists.
As a consequence diligent testing by BBR has resulted in a pair of camshaft profiles with unique lift and timing specifications that are a direct replacement for the standard Mazda items (valve springs and retainers required and included).
BBR’s SkyActiv Super 220 camshaft profiles deliver strong gains on the 2019 184ps engine acrross the entire rev-range.
The maximum valve lift is 11.5mm inlet and 10.5mm exhaust, the full range of mechanical camshaft (VVT) can be used whilst maintaining a safe valve to piston clearance of 1.5mm (1.6mm standard).

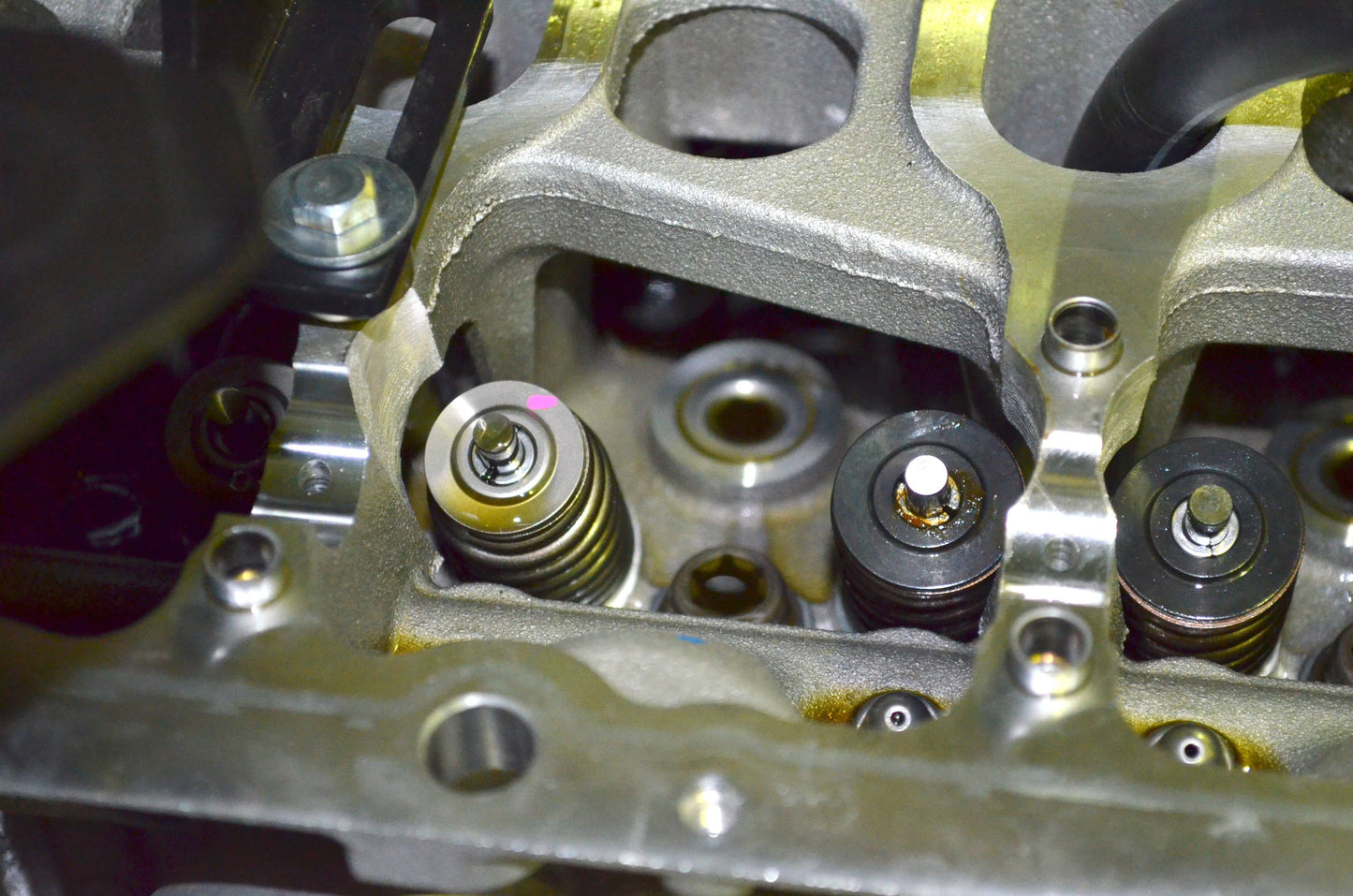

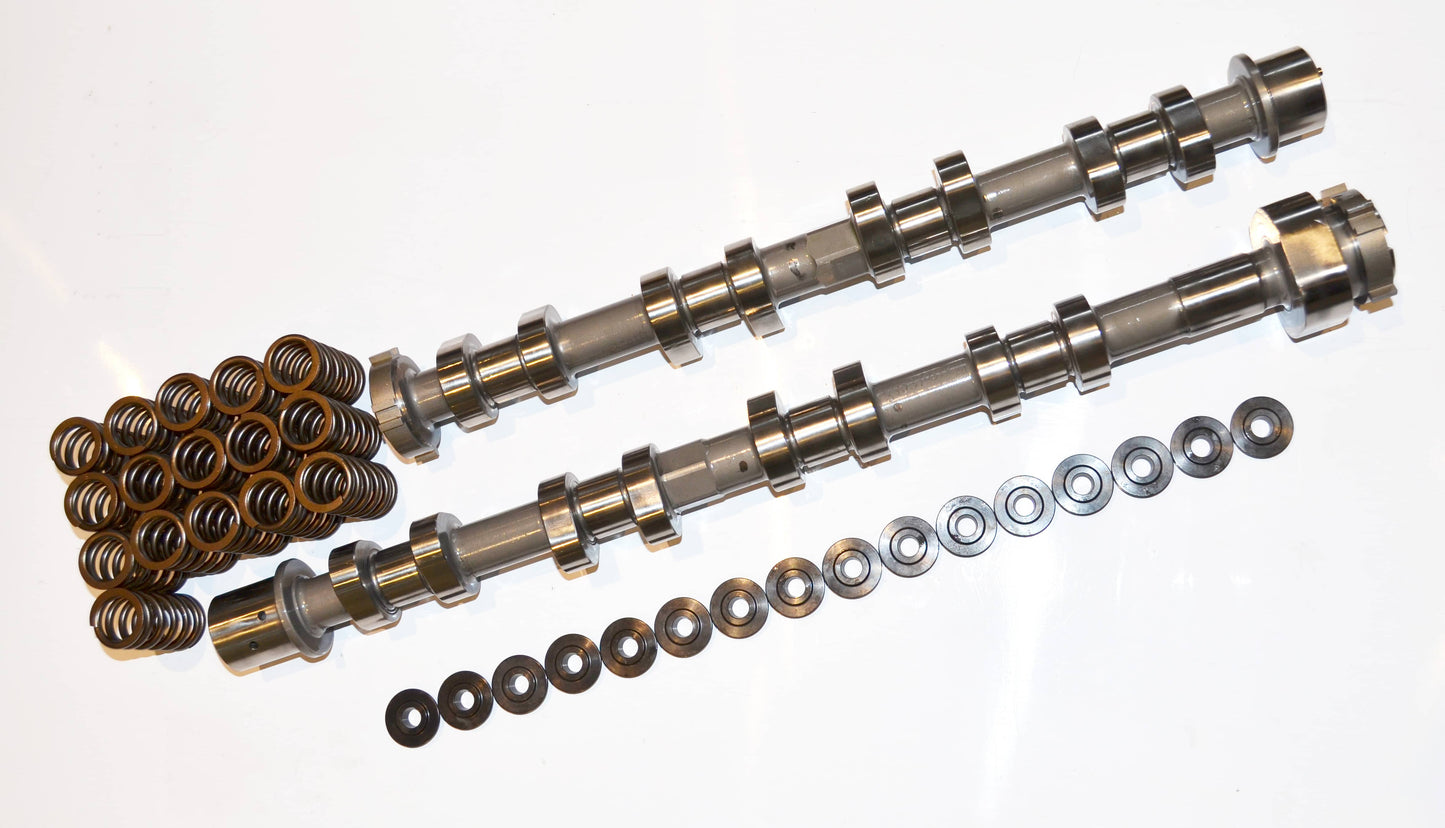

Our SkyActiv camshaft package includes inlet and exhaust replacement steel billet camshafts along with bespoke valve springs and retainers.

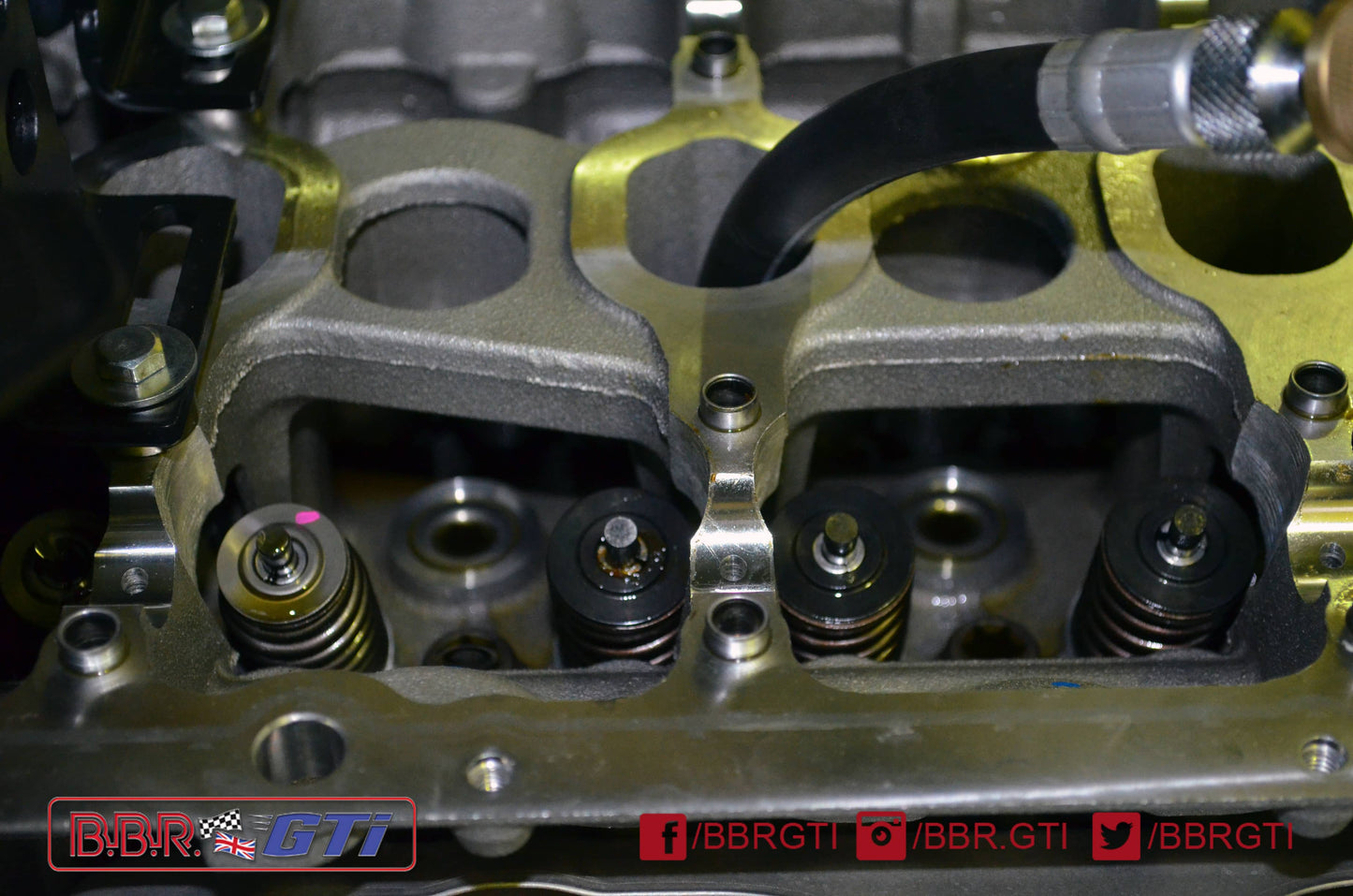

Replacement retainers are no longer required due to custom manufactured conical springs which are now provided.
